LVM-181S 18.5″ (500nit) 1920×1080 (true 8 bit) Wide Viewing LCD Monitor, 2X 3G/HD/SD-SDI inputs and outputs, DVI-I In, HDMI In

Name: LVM-181S 18.5" (500nit) 1920x1080 (true 8 bit) Wide Viewing LCD Monitor, 2X 3G/HD/SD-SDI inputs and outputs, DVI-I In, HDMI In
Price: 102500.00 THB
Availability: InStock

฿102,500.00

The LVM-181S is our top grade 18.5” model with a 18.5 inch IPS LCD panel with 1920×1080 native resolution, high brightness 500 nit, enhanced contrast ratio and wide viewing angle all unmatched by other LCD monitors. A completely redesigned video processing unit provides powerful dual-channel performance and artifact-free image reproduction. Support for various cinema camera log-to-linear LUTs, easy field upgradability and a full array of image processing features are standard.

SKU: LVM-181S Category: TVLogic Tags: 18.5 Inch FHD LCD Monitor, 1920 x 1080, 3G-SDI, 3G-SDI A/B, Component/Composite In/Out, DVI-I In, Focus Assist, HDMI, HDMI IN, HLG and SLog3, LVM-181S, Picture by Picture, SMPTE-C

Description
Additional information

HDR Emulation

A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI color gamut.

Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as ‘HDR Emulation monitor’ in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.

* True HDR Monitor : HDR Display (~1000nit, 1M CR, DCI gamut) + HDR EOTF & other related function
* HDR Emulation Monitor : Normal Display (~400nit, 1000:1, BT.709 gamut) + HDR EOTF & other related function

And in TVLogic monitors, HDR Emulation function includes the control parameters below;

* Standard Color Mode (HLG, PQ, PQ2)
* Video Range
* Display Luminance *
* HDR EOTF (PQ, HLG) or Camera Logs** (coming soon)
* PQ EETF (On / Off)
* HLG System Gamma (Fixed 1.2 / Auto)
* Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode)
* White Point (D65, D93, DCI)
* Gamut Warning
* Shadow Mode *** (LUM-318G only)

HDR Emulation

And in TVLogic monitors, HDR Emulation function includes the control parameters below;

Ember+ control protocol

‘Ember+’ from LAWO group is a non-proprietary TCP/IP interface protocol for broadcast equipment. An Ember+ provider can “publish” parameters which may then be used by an Ember+ consumer. Please visit GITHUB site for more information.

Ember+ control protocol
※ Image courtesy of LAWO group.

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

1:1 Pixel Mapping Modes for SD/HD

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

blue only

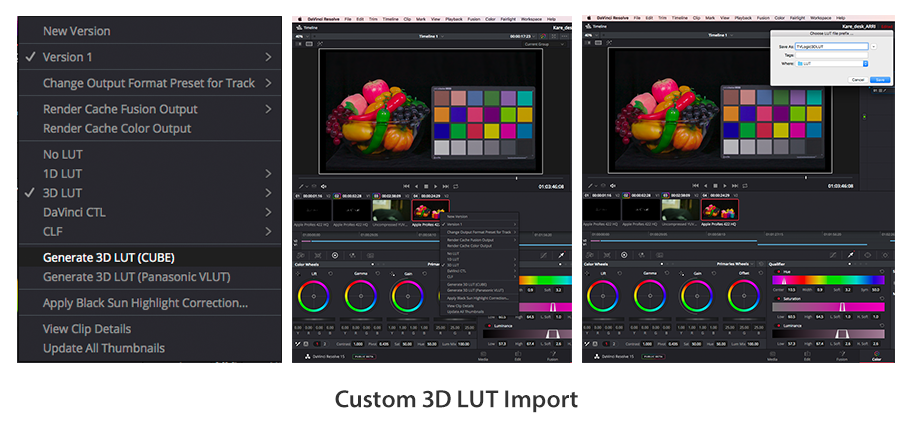

Custom 3D LUT Import

Allows you to load your making 3D-LUT files at NLE software like Davinci Resolve by USB flash memory and displays your LUT on VFM-055A or F-7H. Once you synchronize LUTs in the monitor, you will easily change them on production.

Custom 3D LUT Import

Closed caption

Closed caption.

Closed caption

Fast Mode

Fast Mode is to reduce the internal video processing time of the monitor to reduce the video latency and lip sync., usually by sacrificing the de-interlacing quality in the scaler IC.

Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

Focus Assist

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

H/V Delay

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.

Key Lock

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Marker

PBP(Picture by Picture)

Support displaying multiple inputs on the screen at the same time.

PBP(Picture by Picture)

Range Error

Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.

Range Error

Time Code Display

Displays the Timecode information on the screen.

Time Code Display

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.

UMD

User Aspect

Adjusts the Width /Height display ratio.

User Aspect

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Various Scan Modes

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

Waveform/Vector

Ember+ control protocol

Display Spec.

Size	18.5″
Resolution	1920 x 1080 (16 : 9)
Pixel Pitch
Color Depth	1.06B
Viewing Angle	178°(H) / 178°(V)
Luminance	500cd/m2
Contrast Ratio	1,000:1
Display Area	408(H) x 203(V) mm

Input

3 X BNC	Analog Input (Component)
2 X BNC	3G-SDI A/B Channel Input
1 X HDMI	HDMI Input
1 X DVI	DVI Input

Output

3 X BNC	Analog Output (Component)
2 X BNC	3G-SDI Output
2 X BNC	HD SDI A/B Channel Output

Input Signal

3G SDI	2.970Gbps
HD SDI	1.485Gbps
SD SDI	270Mb/s
HDMI	480i/480p/576i/576p/720p/1080i/1080p/640×480/ 720×400/800×600/1024×768/1280×1024/1366×768
DVI Analog	640×480/720×400/800×600/1024×768/1366×768
DVI DP	640×480/720×400/800×600/1024×768/1366×768
DVI DH	X

SDI Input Signal Formats

SMPTE 425M-A/B

“1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF)

Audio

Audio Out

Analog Stereo (Phone Jack), Internal Speaker(Stereo)

FPGA Functions

1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, X3 Zoom(PBP)

Closed Caption

CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR, OP42, OP47

Calibration

TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

Other Functions

REMOTE	GPI (RJ45)
USB	Firmware update by USB memory stick
Ethernet	Ethernet Control support

Options

Battery Bracket, Carrying Case, External Acrylic Filter, Gold Mount, Sun Hood, V-Mount

Dimensions

Weight	5 kg
